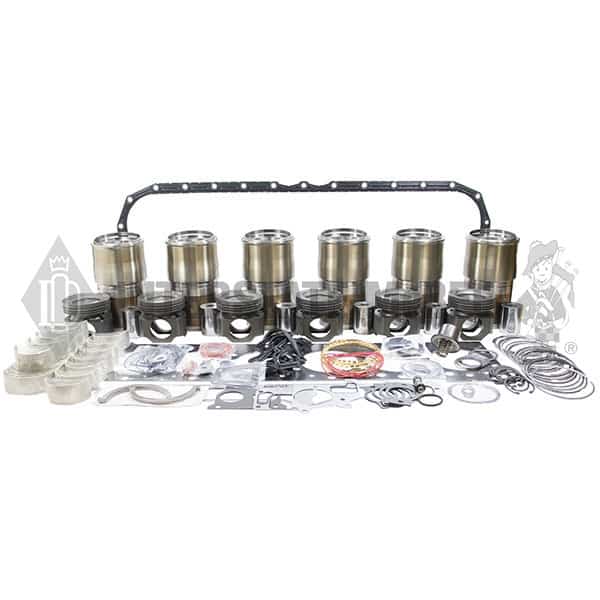

Inframe Rebuild Kit – APR | Cummins ISX / CM870 / CM871 Engine | 4376428

Description

1 x In-Frame Rebuild Kit – 4376428

FIT: Cummins ISX / CM870 / CM871

Year: 1997-2010

Details:

Piston: 3684467 | Skirt Type: Closed | Top Ring Location: High | Top Land Diameter: Large | Liner OD Size: 152mm

Piston: 2882631 | Skirt Type: Closed | Top Ring Location: High | Top Land Diameter: Reduced | Liner OD Size: 152mm

Contents:

• 6 x Piston Kits (4376243)
  • 6 x Piston (3684472, 2882630)
  • 12 x Retaining Rings
  • 6 x Piston Pins
• 6 x Piston Ring Sets
  • 6 x Top Piston Rings
  • 6 x Compression Piston Rings
  • 6 x Oil Piston Rings
• 6 x Cylinder Liner Kits
  • 6 x Cylinder Liners
  • 6 x Carbon Scraper Rings
  • 6 x Liner Seals
  • 6 x Liner Shims
• 6 x Connecting Rod Bearings
• 1 x Main Bearing Set
  • 7 x Main Bearings Pair
  • 2 x Thrust Washers Pair
• 1 x O-Ring Seal
• 1 x Bypass Valve Plunger
• 1 x Oil Pan Gasket

• 1 x Upper Engine Gasket Set
  • 1 x O-Ring Seal
  • 1 x O-Ring Seal
  • 1 x O-Ring Seal
  • 1 x Electronic Control Module
  • 1 x Thermostat Housing Cover Gasket
  • 1 x Thermostat Housing Gasket
  • 1 x Turbocharger Gasket
  • 8 x Cavity Plugs
  • 1 x Camshaft Cover Seal
  • 1 x Camshaft Cover Seal
  • 6 x O-Ring Seals
  • 1 x Exhaust Manifold Gasket
  • 4 x Exhaust Manifold Gaskets
  • 1 x Exhaust Manifold Gasket
  • 1 x Rectangular Strip Seal
  • 1 x Fuel Control Housing Gasket
  • 6 x O-Ring Seals
  • 6 x O-Ring Seals
  • 6 x O-Ring Seals
  • 1 x Cylinder Head ISX Gasket
  • 1 x Flange Gasket
  • 6 x O-Ring Seals
  • 6 x Injector O-Ring Seals
  • 1 x Grommet Seal
  • 1 x Connection Gasket
  • 1 x Camshaft Cover Gasket
  • 1 x Camshaft Cover Gasket

OE Replacement:

4352392

4376428

Warranty: 2 Years Parts & Labor
