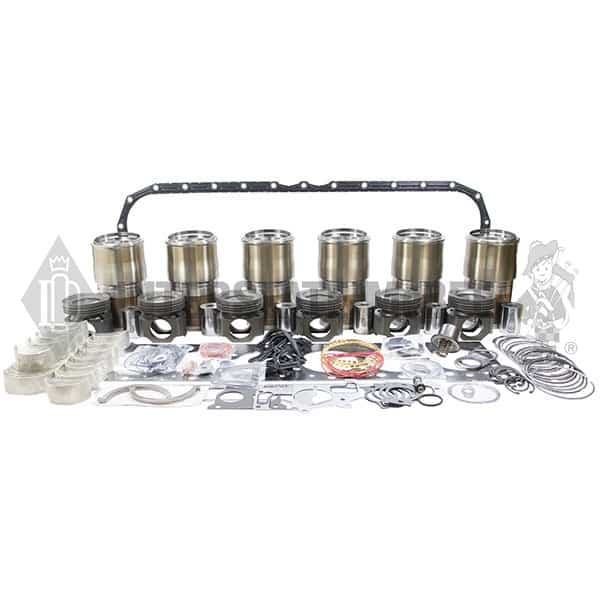

Inframe Rebuild Kit | Cummins ISX 15 / QSX 15 Engine | 5473075

Description

1 x In-Frame Rebuild Kit – 5473075

FIT: Cummins ISX15 / QSX15 / CM2250 / CM2350

Details:

Piston: 3687897 | Skirt Type: Closed | Top Ring Location: Low | Top Land Diameter: Reduced | Liner OD Size: 152mm

Piston: 3688405 | Skirt Type: Closed | Top Ring Location: Low | Top Land Diameter: Reduced | Liner OD Size: 152mm

Piston: 3687605 | Skirt Type: Closed | Top Ring Location: Low | Top Land Diameter: Large | Liner OD Size: 152mm

Contents:

• 6 x Cylinder Liner Kits
  • 6 x Cylinder Liners
  • 6 x Carbon Scraper Rings
  • 6 x Liner Seals
  • 6 x Liner Shims
• 6 x Piston Kits
  • 6 x Engine Piston
  • 6 x Piston Pins
  • 12 x Retaining Rings
  • 6 x Piston Ring Sets
• 1 x Main Bearing Set
• 1 x O-Ring Seal
• 1 x Bypass Valve Plunger
• 1 x Oil Pan Gasket
• 1 x Thermostats
• 6 x Connecting Rod Bearings
• 6 x Connecting Rod Bearings
• 1 x Upper Engine Gasket Set
  • 1 x Thermostat Seal
  • 1 x O-Ring Seal
  • 1 x O-Ring Seal
  • 1 x O-Ring Seal
  • 1 x O-Ring Seal
  • 1 x Thermostat Housing Cover Gasket
  • 4 x Exhaust Manifold Gaskets
  • 2 x Grommet Seals
  • 1 x Exhaust Manifold Gasket
  • 1 x Water Seal
  • 5 x O-Ring Seals
  • 6 x XPI Copper Injector Seals
  • 2 x Sealing Washers
  • 1 x Thermostat Housing Gasket
  • 1 x Exhaust Outlet Gasket
  • 1 x Intake Manifold Gasket
  • 2 x O-Ring Seals
  • 1 x Water Seal
  • 1 x Turbocharger Gasket
  • 1 x Rectangular Ring Seal
  • 1 x Electrical Connector Seal
  • 1 x O-Ring Seal
  • 1 x Rectangular Strip Seal
  • 2 x Seal Carriers
  • 2 x Turbo Hose O-Ring Seals
  • 1 x O-Ring Seal
  • 1 x O-Ring Seal
  • 16 x Sealing Washers
  • 2 x Sealing Washers
  • 4 x Cavity Plugs
  • 2 x Sealing Washers
  • 1 x O-Ring Seal
  • 8 x Sealing Washers
  • 1 x Oil Drain Gasket
  • 1 x Exhaust Outlet Connection Gasket
  • 1 x Camshaft Cover Seal
  • 1 x Injector Gasket
  • 6 x O-Ring Seals
  • 3 x Gaskets
  • 1 x Valve Cover Gasket
  • 6 x HPI/XPI O-Ring Seals
  • 2 x O-Ring Seals
  • 1 x Grommet Seal
  • 1 x Camshaft Cover Gasket
  • 1 x Cylinder Head Gasket

OE Replacement

5473075

Warranty: 2 Years Parts & Labor
